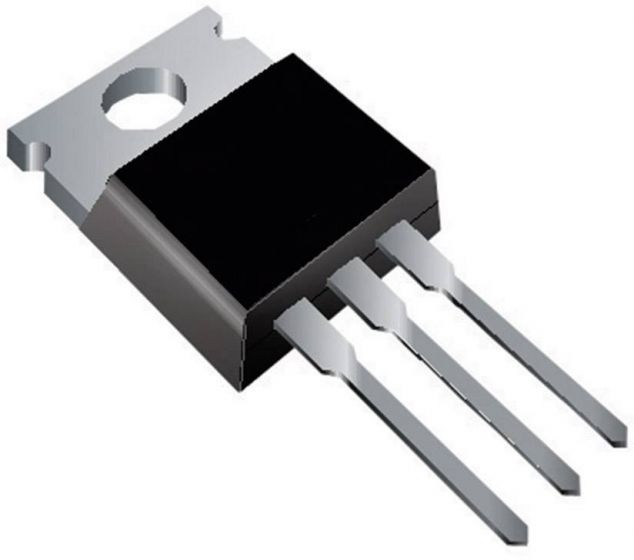

Bipolar (BJT) Single Transistor, Darlington, NPN, 60 V, 5 A, 65 W, TO-220, Through Hole
The TIP120 from STMicroelectronics is a through hole complementary power darlington transistor in TO-220 package. This device manufactured in planar technology with "base island" layout and monolithic darlington configuration resulting in exceptional high gain performance coupled with very low saturation voltage.
Op voorraad
Gratis verzenden
Nog 5 beschikbaar
The TIP120 from STMicroelectronics is a through hole complementary power darlington transistor in TO-220 package. This device manufactured in planar technology with "base island" layout and monolithic darlington configuration resulting in exceptional high gain performance coupled with very low saturation voltage.
- Collector to emitter voltage (Vce) is 60V
- Collector current (Ic) is 5A
- Power dissipation (Pd) is 65W
- Collector to emitter saturation voltage of 4V at 5A collector current
- DC current gain (hFE) of 1000
- Operating junction temperature range from 150°C
Applications
Power Management, Consumer Electronics, Portable Devices, Industrial
Warnings
Market demand for this product has caused an extension in lead times, delivery dates may fluctuate
| Artikelnummer | A00842 |
|---|---|
| Fabrikantcode | TIP120 |
| Garantie | 2 Jaar |
| Short Description | The TIP120 from STMicroelectronics is a through hole complementary power darlington transistor in TO-220 package. This device manufactured in planar technology with "base island" layout and monolithic darlington configuration resulting in exceptional high gain performance coupled with very low saturation voltage. |
