Core3566 Module Kit Rockchip RK3566 Quad-core

Specifications

Processor	Quad-core Arm Cortex-A55 @1.8GHz
Memory	Options for 2GB/4GB LPDDR4 SDRAM memory
Storage	Options for 0GB (Lite) or 32GB eMMC Flash
NPU	0.8 TOPS @INT8
GPU	Arm Mali-G52 2EE
Connectivity	Optional dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE, supports external antenna
	Supports IEEE 802.3 Gigabit Ethernet.
	USB 2.0 × 1
	PCIe Gen 2 x 1
	28 GPIO signals
	SD card interface (booted from eMMC first)
Video	HDMI interface (4Kp60 supported)
	2-lane MIPI DSI display interface × 2
	2-lane MIPI CSI camera interface × 2
Multimedia	4Kp60 H.264/H.265/VP9 (decode), 1080p60 H.264/H.265 (encode)
Operating Voltage	5V DC
Operating Temp.	-10°C ~ 80°C ambient
Dimensions	55 × 40 × 4.7mm

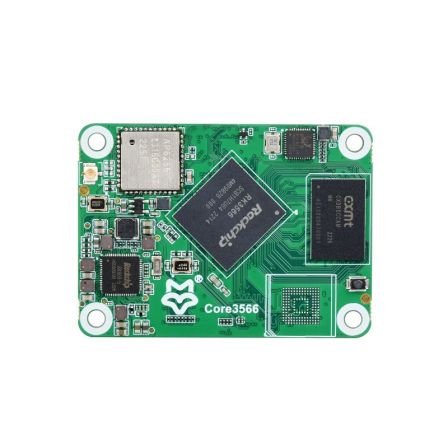

Core3566 Module

Kit Selection Guide

KIT	A	B	C	D	E	F	G	H
Necessary accessories (UART module, 1PIN cables, USB cables, power supply)	√	√	√	√	√	√	√	√
Core3566102032	√		√
Core3566104032		√		√	√	√	√	√
CM4-IO-BASE-A	√	√			√		√
CM4-to-Pi4-Adapter			√	√		√		√
HDMI to Micro HDMI Adapter			√	√		√		√
IMX219-77 Camera					√	√
4.3inch DSI LCD					√	√
8DP-CAPLCD							√	√

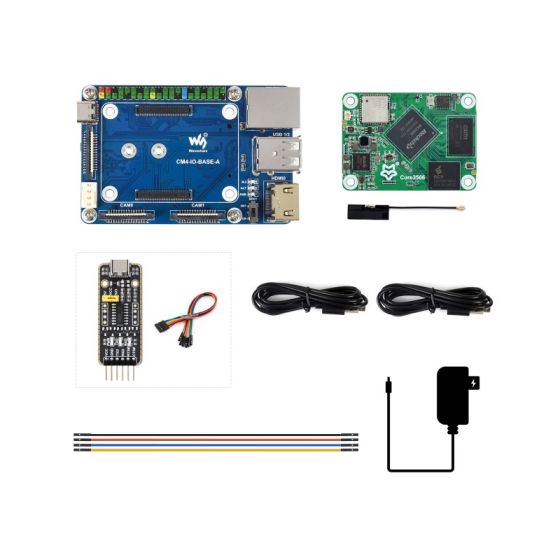

Core3566-Kit-A/B: CM4 base board kit (options for 2GB/4GB RAM)
The Core3566-Kit-A includes Core3566102032 (2GB RAM, 32GB eMMC Flash, with WiFi), and Core3566-Kit-B includes Core3566104032 (4GB RAM, 32GB eMMC Flash, with WiFi), both kits are equipped with CM4 mini base board (A), come with UART module, 1PIN cables, USB cables and 5V 3A power supply.

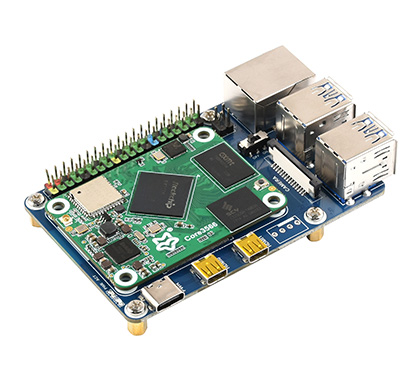

Core3566-Kit-C/D: CM4 to Pi4B adapter board kit (options for 2GB/4GB RAM)
The Core3566-Kit-C includes Core3566102032 (2GB RAM, 32GB eMMC Flash, with WiFi), and Core3566-Kit-D includes Core3566104032 (4GB RAM, 32GB eMMC Flash, with WiFi), both kits are equipped with CM4 to Pi4B adapter board, come with HDMI adapter, UART module, 1PIN cables, USB cables and 5V 3A power supply.

Core3566-Kit-E: CM4 base board + 4.3inch touch display + camera kit (4GB RAM)
On the basis of kit B, the Core3566-Kit-E comes with a 4.3inch touch display (800×480 resolution) and an IMX219 camera (8MP), which can display the images taken by the camera in real time to realize more human-computer interaction applications.

Core3566-Kit-F: CM4 to Pi4B adapter board + 4.3inch touch display + camera kit (4GB RAM)
On the basis of kit D, the Core3566-Kit-F comes with a 4.3inch touch display (800×480 resolution) and an IMX219 camera (8MP), which can display the images taken by the camera in real time to realize more human-computer interaction applications.

Core3566-Kit-G: CM4 base board + 8inch touch display kit (4GB RAM)
On the basis of kit B, this kit is equipped with an 8inch touch display (1280×800 resolution), larger screen size and more convenient for interactive operation, suitable for application scenarios with more demand for display screen usage.

Core3566-Kit-H: CM4 to Pi4B adapter board + 8inch touch display kit (4GB RAM)
On the basis of kit D, this kit is equipped with an 8inch touch display (1280×800 resolution), larger screen size and more convenient for interactive operation, suitable for application scenarios with more demand for display screen usage.

Highly Integrated, Powerful Performance

Integrated With CPU, GPU, VPU, NPU, Etc.

RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow

High Speed WiFi And Bluetooth

Dual-Band WiFi And Bluetooth AP6256 Module, Surf The Web Anywhere
