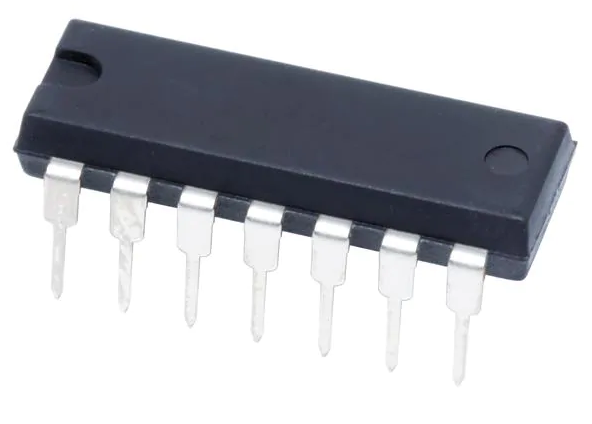

Logic IC, Inverter, Hex, 1 Inputs, 14 Pins, DIP, 74HC04
The SN74HC04N is a 1-input 14-pin Hex Inverter made of CU NIPDAU CU SN lead/ball finish. This device contains six independent inverters. It performs the Boolean function Y = A in positive logic. It features 20µA maximum ICC low power consumption, ±4mA output drive at 5V and 1µA maximum low input current.
Op voorraad
Gratis verzenden
Nog 5 beschikbaar
The SN74HC04N is a 1-input 14-pin Hex Inverter made of CU NIPDAU CU SN lead/ball finish. This device contains six independent inverters. It performs the Boolean function Y = A in positive logic. It features 20µA maximum ICC low power consumption, ±4mA output drive at 5V and 1µA maximum low input current.
- Outputs can drive up to 10 LSTTL loads
- Green product and no Sb
- Br
Applications
Communications & Networking, Consumer Electronics, Metering
| Artikelnummer | A00857 |
|---|---|
| Fabrikantcode | SN74HC04N |
| Garantie | 2 Jaar |
| Short Description | The SN74HC04N is a 1-input 14-pin Hex Inverter made of CU NIPDAU CU SN lead/ball finish. This device contains six independent inverters. It performs the Boolean function Y = A in positive logic. It features 20µA maximum ICC low power consumption, ±4mA output drive at 5V and 1µA maximum low input current. |
