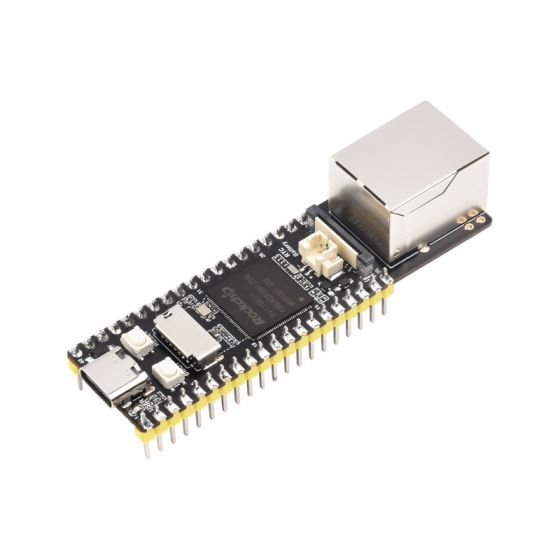

Luckfox Pico Pro/Max RV1106 Linux Micro Development Board ARM Cortex-A7

Momenteel niet op voorraad, bestel als pre-order. Geschatte leverdatum 27-11-2024 - 28-11-2024.

Ontvang bij aankoop
minimaal 10 SOS spaarpunten
(t.w.v. €1,00)i

Niet op voorraad

Bestel als pre-order en ontvang het artikel wanneer het weer op voorraad is.

Specifications

Processor	Cortex A7@1.2GHz
NPU	0.5TOPS, supports int4, int8 and int16
ISP	Input 5M @30fps (Max)
Memory	Pro: 128MB DDR3L Max: 256MB DDR3L
USB	USB 2.0 Host/Device
Camera	MIPI CSI 2-lane
GPIO	26 × GPIO pins
Ethernet port	10/100M Ethernet controller and embedded PHY
Default Storage	SPI NAND FLASH (256MB)

Version And Pinheader Options

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY

Easier To Develop

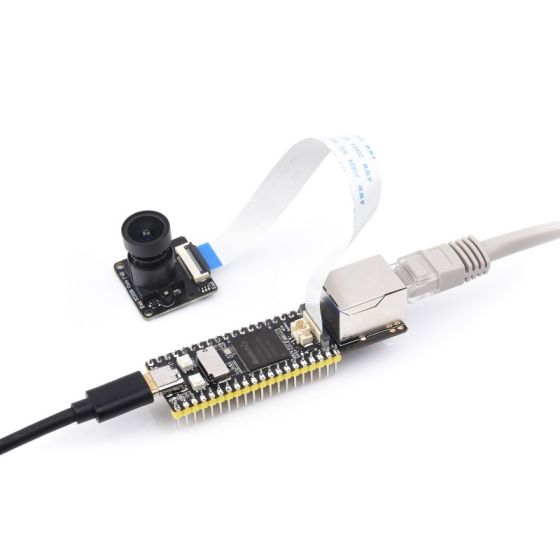

Integrates TF Card Slot, Camera Interface And Ethernet Port

SLC NAND FLASH

For A Better User Experience

Application Example

Suitable For More Application Examples

Pin Definition

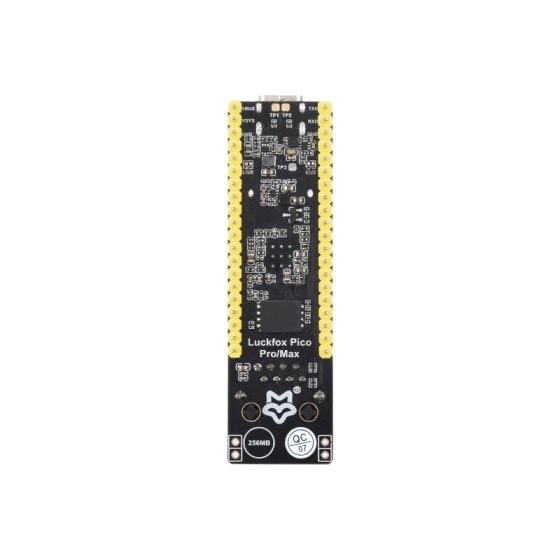

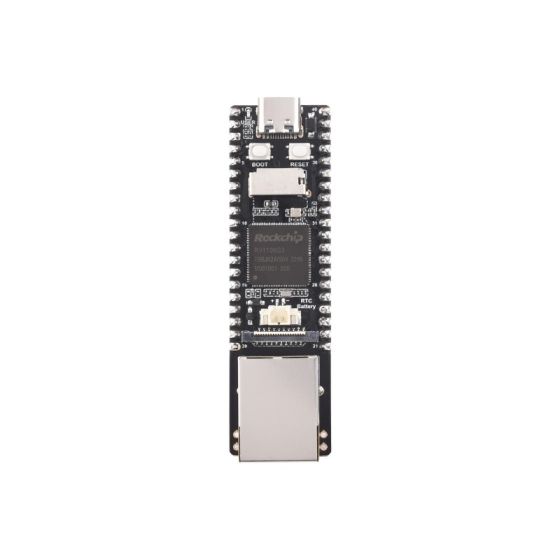

What's On Board

USB Type-C connector
for power supply and program burning
ACT-LED
BOOT button
Press it when powering on to enter download mode
RESET button
TF card slot
RV1106
Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G2 for Pro version, RV1106G3 for Max version)
