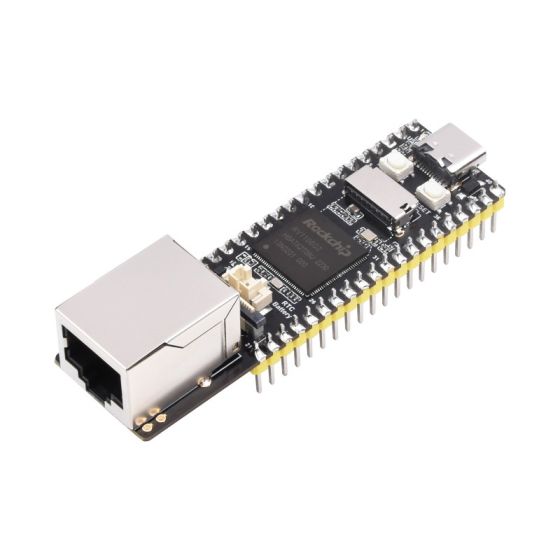

Luckfox Pico Pro/Max RV1106 Linux Micro Development Board
Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors
Niet op voorraad
Bestel als pre-order en ontvang het artikel wanneer het weer op voorraad is.
Luckfox Pico Pro/Max RV1106 Linux Micro Development Board
Specifications
| Processor | Cortex A7@1.2GHz |
| NPU | 0.5TOPS, supports int4, int8 and int16 |
| ISP | Input 5M @30fps (Max) |
| Memory | Pro: 128MB DDR3L Max: 256MB DDR3L |
| USB | USB 2.0 Host/Device |
| Camera | MIPI CSI 2-lane |
| GPIO | 26 × GPIO pins |
| Ethernet port | 10/100M Ethernet controller and embedded PHY |
| Default Storage | SPI NAND FLASH (256MB) |
Version And Pinheader Options
Highly Integrated And Powerful Performance
Integrates CPU, NPU, ISP And Other Processors
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
- Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
- Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
- Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
- Integrated with built-in POR, audio codec and MAC PHY
Easier To Develop
Integrates TF Card Slot, Camera Interface And Ethernet Port
SLC NAND FLASH
For A Better User Experience

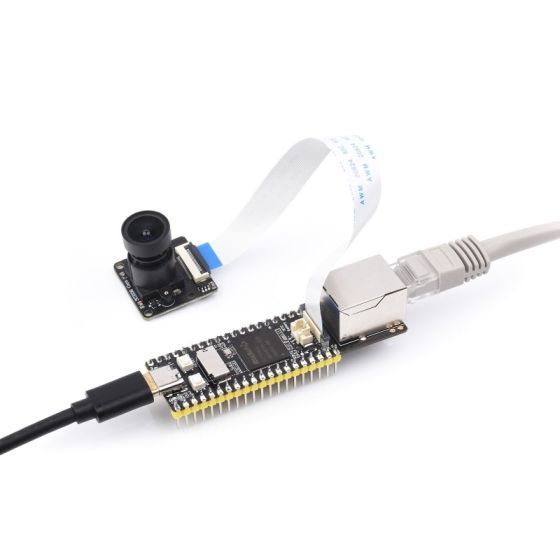

Application Example
Suitable For More Application Examples
Pin Definition

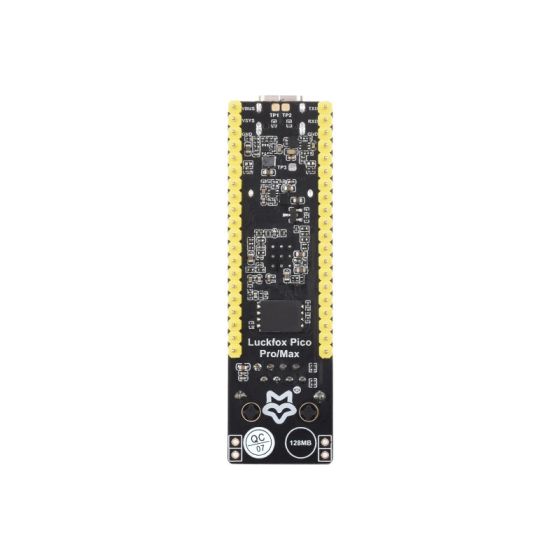

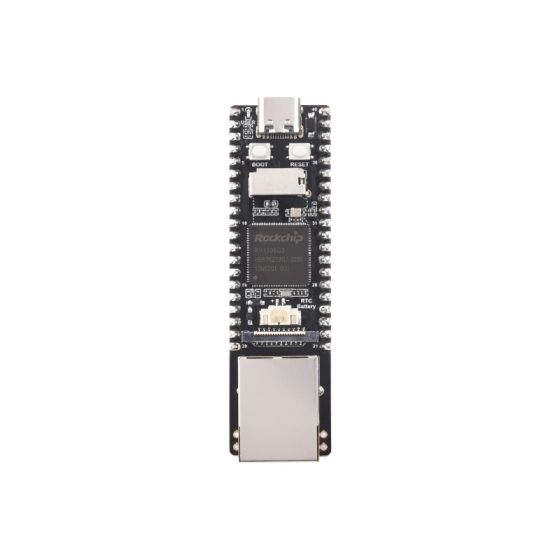

What's On Board
- USB Type-C connector
for power supply and program burning - ACT-LED
- BOOT button
Press it when powering on to enter download mode - RESET button
- TF card slot
- RV1106
Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G2 for Pro version, RV1106G3 for Max version)
- RTC battery header
MX1.25 connector, for connecting RTC battery - CSI camera interface
MIPI CSI 2-lane - RJ45 Ethernet port
- USB test pads
- BOOT test pad
- W25N02KV
256MB SLC NAND FLASH - GPIO header
Product Show
Outline Dimensions
| Artikelnummer | 25718 |
|---|---|
| Merk | LuckFox |
| Garantie | 2 Jaar |
| Short Description | Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors |
