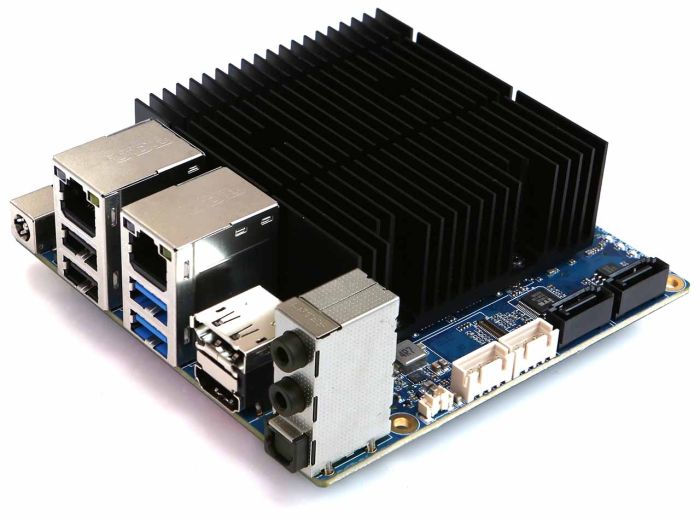

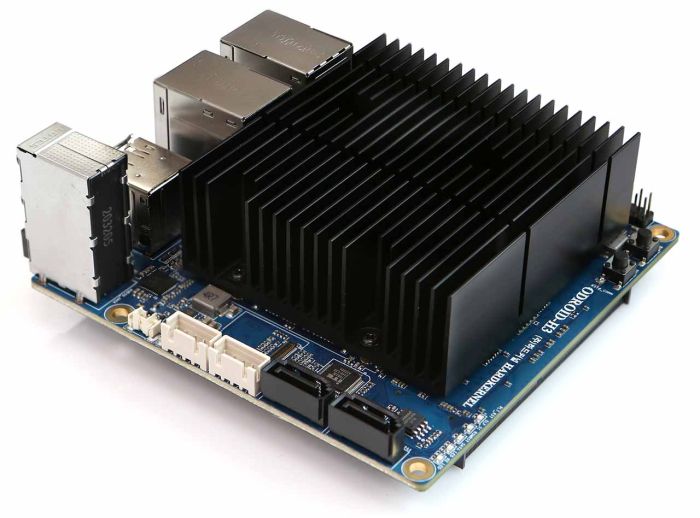

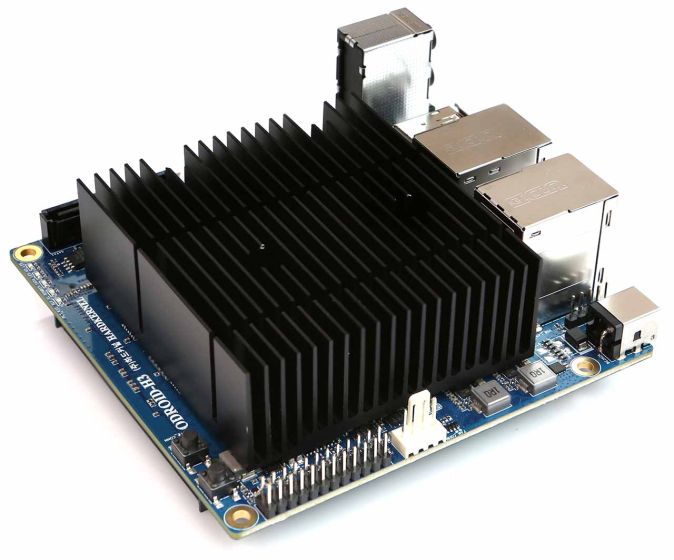

ODROID - H3+
ODROID - H3+
Niet op voorraad
Bestel als pre-order en ontvang het artikel wanneer het weer op voorraad is.
ODROID - H3+
ODROID - H3+ heeft dezelfde vormfactor en vergelijkbare energie-efficiëntie als hun voorganger, de ODROID-H2+. Maar de ODROID H3+ is krachtiger en biedt hogere prestaties.
Met geweldige compatibiliteit, een gloednieuwe x86 64-bit single board computer met grote geheugencapaciteit en geavanceerde IO-poorten.
-
Intel® Quad-Core Processor Jasper Lake N6005 has a base clock of 2GHz and a boost clock of 3.3GHz with 1.5MB L2 and 4MB L3 cache by a 10 nm process.
-
Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s)
-
Two SO-DIMM slots, up to 32GB per slot
-
PCIe 3.0 x 4 lanes for one M.2 NVMe storage
-
2 x 2.5Gbit Ethernet ports
-
2 x SATA 3.0 ports
-
SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
-
Intel UHD Graphics 32 EUs Turbo 900MHz
-
HDMI 2.0 and DP 1.2 multiple video outputs
- A configurable Unlimited Performance mode allowing the CPU to run in sustained turbo boost mode.
- RTC / BIOS backup battery is included

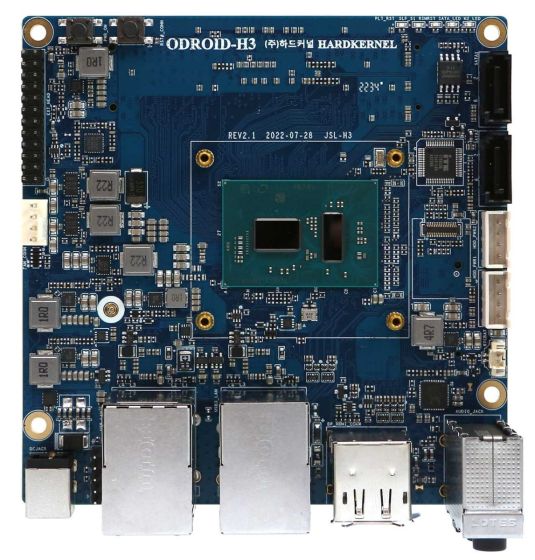

Board Details
-
A. CPU (Intel Celeron N6005)
-
B. 2 x DDR4 SO-DIMM slots (Dual channel memory support)
-
C. 1 x M.2 PCI Express Module Socket (NGFF-2280)
-
D. 1 x eMMC (Embedded Multimedia-Card) Socket
-
E. 2 x SATA Power Connectors (2.5mm pitch, JST-XH compatible connector)
-
F. 2 x SATA3 6.0 Gb/s Data Connectors
-
G. 1 x DC Power Jack
-
H. 2 x USB 3.0
-
I. 2 x USB 2.0
-
J. 1 x HDMI 2.0
-
K. 1 x DisplayPort 1.2
-
L. 2 x RJ45 Ethernet Ports (10/100/1000/2500)
-
M. 5 x System LED Indicators
-
N. 1 x Peripheral Expansion Header (24-pin)
-
O. 1 x Power Switch
-
P. 1 x Reset Switch
-
Q. 1 x Backup Battery Connector (2-pin)
-
R. 1 x Active Cooling Fan Connector (4-pin)
-
S. 1 x Audio out, 1 x Audio in, 1 x SPDIF out

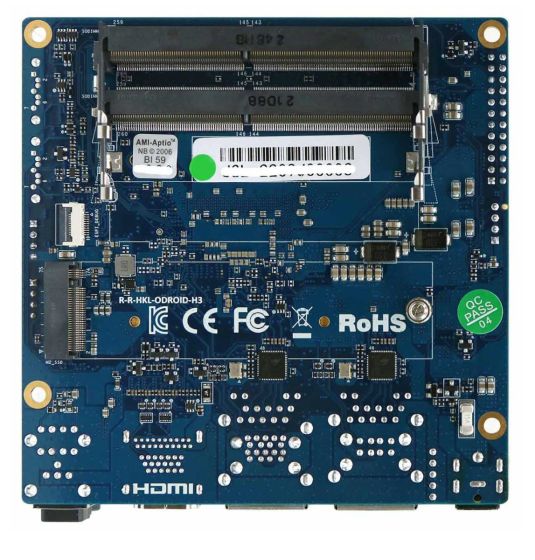

-On the H3+ board, a yellow round sticker is attached on the product serial label and, on the H3 board, a green round sticker is attached.
| Artikelnummer | G220915140803 |
|---|---|
| Merk | Odroid |
| Fabrikantcode | G220915140803 |
| Garantie | 2 Jaar |
| Afmetingen | 110mm x 110mm x 47mm |
| Processor (CPU) | Intel Celeron N6005 Processor (10nm, Quad-Core, TDP 10W) H3+(N6005) : up to 3.3Ghz 4MB L2 Cache Intel UHD Graphics (24/32 EU up to 900MHz) |
| Geheugen | 2 x DDR4 1.2V SO-DIMM slots Dual Channel, up to 2933 MT/s (DDR4-PC23400) Max memory capacity 64GB DDR3/DDR5 are not supported |
| Features Overig | Passive Heatsink BIOS Backup Battery – Maintains system time and BIOS settings Power Button Reset Button System LEDS Indicators: – Red (PWR) – Solid light when DC power is supplied – Blue (left, SLEEP) – turns off only when the system enters into suspend mode – Blue (right, PMIC) – turns on only when the major power rails are working – Amber (SATA) – Flashes when SATA data transfers – Green (NVMe) – Flashes when NVMe data transfers Active Cooling Fan Connector (12V 4-pin, PWM input + TACHO output) – Active Cooling Fan is optional – Connector (4-pin, 2.54mm pitch) 2 x USB 3.0 Host ports 2 x USB 2.0 Host ports 1 x Peripheral Expansion Header (24-pin, 2.54mm pitch) – 1 x DC 5V, 1 x DC 3.3V, 5 x GND – 1 x UART (TXD/RXD/RTS/CTS) – 2 x I2C (SCL/SDA) – 1 x External Power Button – HDMI CEC, 5VA+ – 3 x USB 2.0 – All 3.3V I/O signal level
|
| Audio | 1 x Audio out (3.5mm jack) 1 x Audio in (3.5mm jack) 1 x SPDIF out (ALC1200, HDA codec) * HDMI & DP have audio output too
|
| Video | 1 x DisplayPort 1.2 (up to 4K@60Hz) 1 x HDMI 2.0 (up to 4K@60Hz) Dual simultaneous display support |
| Handleidingen | Installationhttps://wiki.odroid.com/odroid-h3/start#installation WIKIhttps://wiki.odroid.com/odroid-h3/start Introductionhttps://dn.odroid.com/ODROID-H2/H3_pics/H3_H3+_Introduction.pdf |
| Short Description | ODROID - H3+ |
