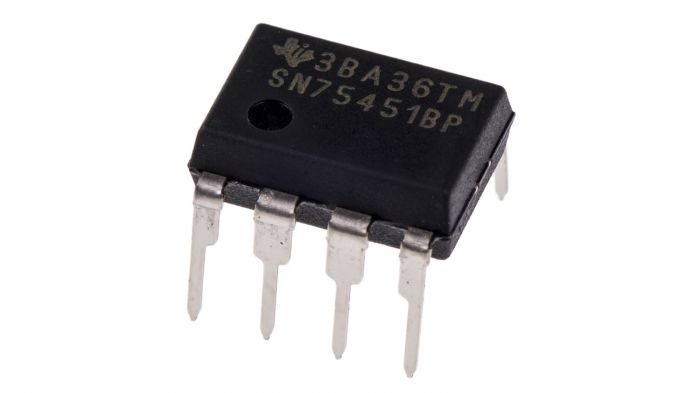

Peripheral Driver, Power, 2 Outputs, 4.75 V to 5.25 V supply, 30 V/400 mA out, DIP-8
The SN75451BP is a Dual Peripheral Driver, designed for use in systems that employ TTL logic. This family is functionally interchangeable with and replaces the SN75450 family and the SN75450A family devices manufactured previously. The speed of the devices is equal to that of the SN75450 family and the parts are designed to ensure freedom from latch-up. Diode-clamped inputs simplify circuit design. Typical applications include high-speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, line drivers and memory drivers. rivers. The SN75451BP are dual peripheral AND drivers, with the output of the logic gates internally connected to the bases of the npn output transistors.
Op voorraad
Gratis verzenden
The SN75451BP is a Dual Peripheral Driver, designed for use in systems that employ TTL logic. This family is functionally interchangeable with and replaces the SN75450 family and the SN75450A family devices manufactured previously. The speed of the devices is equal to that of the SN75450 family and the parts are designed to ensure freedom from latch-up. Diode-clamped inputs simplify circuit design. Typical applications include high-speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, line drivers and memory drivers. rivers. The SN75451BP are dual peripheral AND drivers, with the output of the logic gates internally connected to the bases of the npn output transistors.
- Peripheral drivers for high-current switching at very high speeds
- Characterized for use to 300mA
- High-voltage outputs
- No output latch-up at 20V (after conducting 300mA)
- High-speed switching
- Circuit flexibility for varied applications
- TTL-compatible diode-clamped inputs
- Standard supply voltages
Applications
Power Management, Lighting, Computers & Computer Peripherals
| Artikelnummer | A00844 |
|---|---|
| Fabrikantcode | SN75451BP |
| Garantie | 2 Jaar |
| Short Description | The SN75451BP is a Dual Peripheral Driver, designed for use in systems that employ TTL logic. This family is functionally interchangeable with and replaces the SN75450 family and the SN75450A family devices manufactured previously. The speed of the devices is equal to that of the SN75450 family and the parts are designed to ensure freedom from latch-up. Diode-clamped inputs simplify circuit design. Typical applications include high-speed logic buffers, power drivers, relay drivers, lamp drivers, MOS drivers, line drivers and memory drivers. rivers. The SN75451BP are dual peripheral AND drivers, with the output of the logic gates internally connected to the bases of the npn output transistors. |
