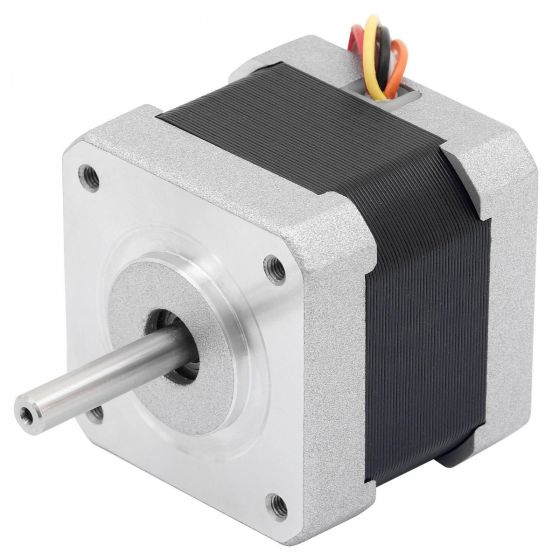

Stappenmotor High Torque 24VDC 42mm 1.8°, 0.09 N-m, 1.4 A
The ST4118X1404-A is a 2-phase Stepper Motor offers reliable, economical drives with a long service life. It provides high step angle precision and step resolution. Stepper motors are strong when a high torque is required at speeds of less than 2000rpm. The small size stepper motor is suitable for applications in which high precision, small dimensions, fast speed and long service life are required. Because of the standardised shaft diameter of 5mm, an encoder can be installed in the double shaft version for position monitoring.
Op voorraad
Gratis verzenden
Nog 1 beschikbaar
The ST4118X1404-A is a 2-phase Stepper Motor offers reliable, economical drives with a long service life. It provides high step angle precision and step resolution. Stepper motors are strong when a high torque is required at speeds of less than 2000rpm. The small size stepper motor is suitable for applications in which high precision, small dimensions, fast speed and long service life are required. Because of the standardised shaft diameter of 5mm, an encoder can be installed in the double shaft version for position monitoring.
- Miniature high torque stepper motor
- Single shaft motor
- 9Ncm Holding torque
- 1.6mH Inductivity per winding
Applications
Industrial, Automation & Process Control, Motor Drive & Control
| Artikelnummer | A00838 |
|---|---|
| Fabrikantcode | ST4118X1404-A |
| Garantie | 2 Jaar |
| Aansluitingen |
|
| Short Description | The ST4118X1404-A is a 2-phase Stepper Motor offers reliable, economical drives with a long service life. It provides high step angle precision and step resolution. Stepper motors are strong when a high torque is required at speeds of less than 2000rpm. The small size stepper motor is suitable for applications in which high precision, small dimensions, fast speed and long service life are required. Because of the standardised shaft diameter of 5mm, an encoder can be installed in the double shaft version for position monitoring. |
