UniPi Neuron M103
UniPi Neuron M103 is a universal control unit. It is a PLC (Programmable Logic Controller).
Niet op voorraad
Bestel als pre-order en ontvang het artikel wanneer het weer op voorraad is.

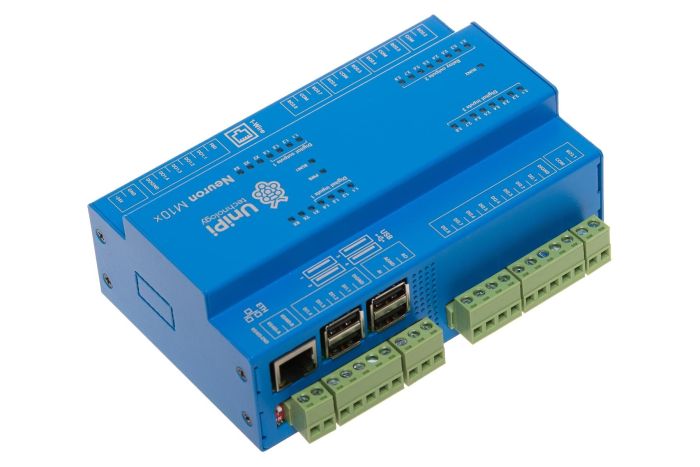

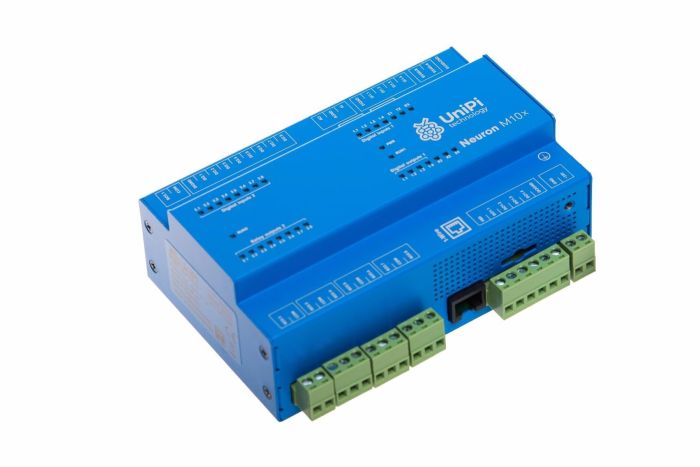

UniPi Neuron M103 is a universal control unit. It is a professional PLC (Programmable Logic Controller) with enough features for automation of more extensive projects fit for smart home automation, building management systems, energy monitoring, light industry automation or other commercial projects. It features digital inputs, transistor outputs, relay outputs, analog output, analog input and serial interface RS485. It has less digital inputs and relays outputs compared to model M203.
Compared to Neuron S offers more features and is suitable for automation of bigger flats and smaller houses. Compared to Neuron L it has less I/Os and is more compact. It has integrated DIN rail mounting for installation in racks and distribution boxes where it takes 8 modules (1 module = 17.5 mm). Neuron units have a degree of protection IP20.
Product Specificaties
- Merk: UniPi
- Garantie: 2 jaar
Fysieke eigenschappen
- Gewicht:

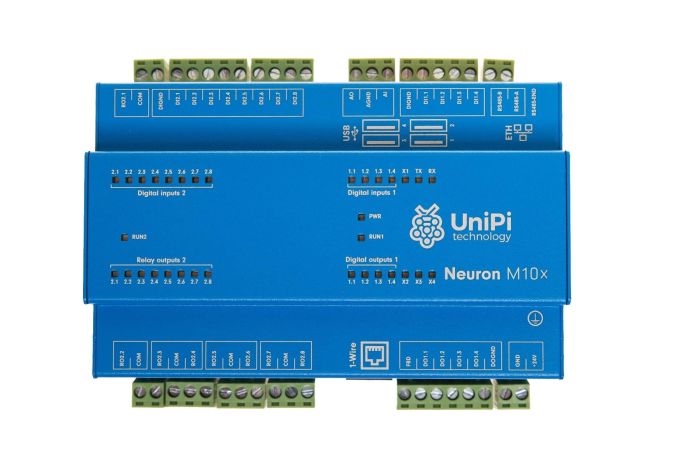

- 12 × Digital inputs 5-24 V DC
- 4 × Transistor outputs max. 750 mA at 50 V DC
- 8 × Relay outputs max. 5 A at 250 V AC / 30 V DC
- 1 × Analog output 0-10 V
- 1 × Analog input 0-10 V/4-20 mA
- 1-Wire bus (with galvanic isolation)
- RS485 (for Modbus communication)
Features overig
- 1 GB RAM
- 4 × 1.2 GHz CPU
- 4 × USB
- 1 × Ethernet 10/100 Mbps
- RTC with backup up to 7 days
- DIN rail mounting
- Anodized aluminum case
- Power supply 24 V DC required
- Lifetime Mervis license
UniPi Neuron M103 is a universal control unit. It is a PLC (Programmable Logic Controller).

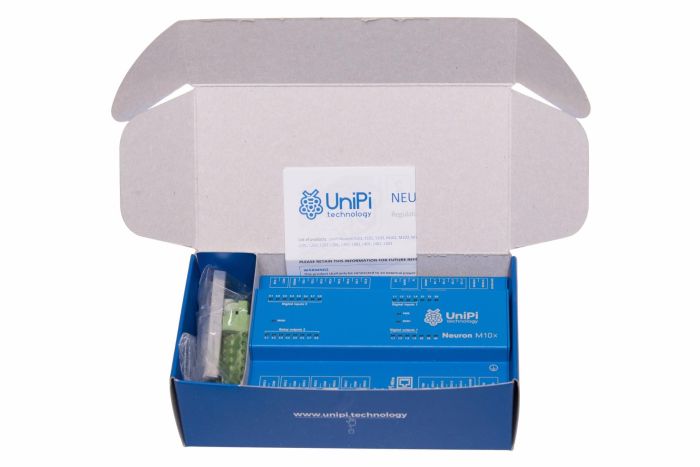

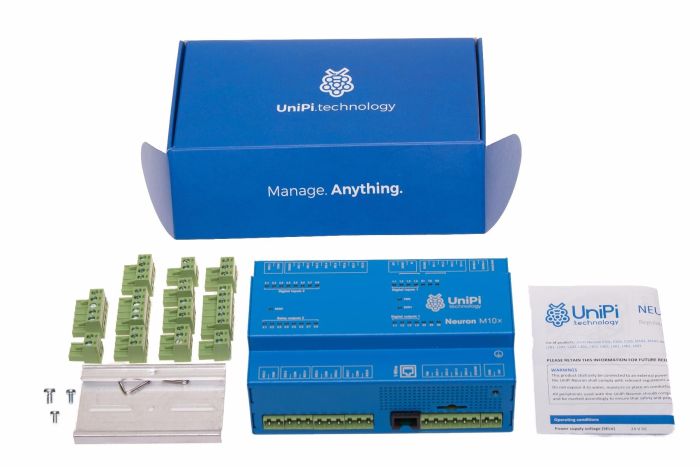

Inbegrepen Meegeleverd
- Control module
- Removable screw connectors

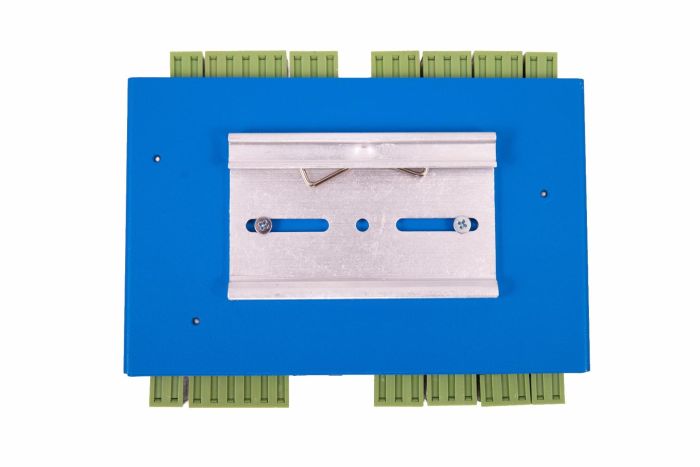

- Holder for DIN rail (35 mm)
- Raspberry Pi3
Mogelijkheden UniPi
- Switch lights
- Control boilers
- Measure temperature
- Check whether doors and windows are opened
- Roll the shutters
- Manage central heating
- Monitoring
- Watering systems
- Building management systems
- HVAC systems
- SCADA
- Remote control
To 1-Wire channel you can connect up to 15 digital thermometers. With relay outputs, you can regulate central heating in the whole building. Digital inputs can be used for reading signals for example from motion sensors and magnetic contacts. If you want to know more check out our case studies. If you need more inputs/outputs, check M203.
Neuron is suitable for all non-safety systems yet you can connect security system controller over Modbus. Generally, Modbus allows you to control any external device supporting this protocol.
Standard Neuron model overview |
|||||||
| Product | DI | DO | RO | AI | AO | RS485 | Common features |
| Type S, size on DIN rail: 4 modules = 7 cm | 1-Wire bus Ethernet 10/100 Mb 4 × 1.2 GHz CPU 1 GB RAM WiFi Bluetooth |
||||||
| S103 | 4 | 4 | 1 | 1 | 1 | ||
| S103-G* | 4 | 4 | 1 | 1 | 1 | ||
| Type M, size on DIN rail: 8 modules = 14 cm | |||||||
| M103 | 12 | 4 | 8 | 1 | 1 | 1 | |
| M203 | 20 | 4 | 14 | 1 | 1 | 1 | |
| M303 | 34 | 4 | 1 | 1 | 1 | ||
| M403 | 4 | 4 | 28 | 1 | 1 | 1 | |
| M503 | 10 | 4 | 5 | 5 | 5 | 2 | |
| Type L, size on DIN rail: 12 modules = 21 cm | |||||||
| L203 | 36 | 4 | 28 | 1 | 1 | 1 | |
| L303 | 64 | 4 | 1 | 1 | 1 | ||
| L403 | 4 | 4 | 56 | 1 | 1 | 1 | |
| L503 | 24 | 4 | 19 | 5 | 5 | 2 | |
| L513 | 16 | 4 | 10 | 9 | 9 | 3 | |
| Extension modules, size on DIN rail: 4 modules = 7 cm | |||||||
| xS10 | 16 | 8 | 1 |
Extension modules communicate over Modbus. It is possible to connect them to the control unit via RS485 interface. Extension modules are compatible with any control unit supporting Modbus and having RS485 interface. |
|||
| xS30 | 24 | 1 | |||||
| xS40 | 8 | 14 | 1 | ||||
| xS50 | 6 | 5 | 5 | 4 | 4 | 1 | |
*Has integrated GPRS module for wireless communication.
Certification
Neuron is CE and EMC tested. According to standard, all UniPi Neuron products can be used in:
- Residential buildings, apartments
- Commercial areas, offices, banks
- Entertainment areas, cinemas, bars, pubs, dance clubs
- Outdoor places, gas stations, parking lots, sport centers
- Areas of light industry, workshops, laboratories, service centers
See the EU declaration of conformity in product file tab. In accordance with European standards, Neuron is a professional control unit. For the US market, it brings a device for automation development.
Other materials

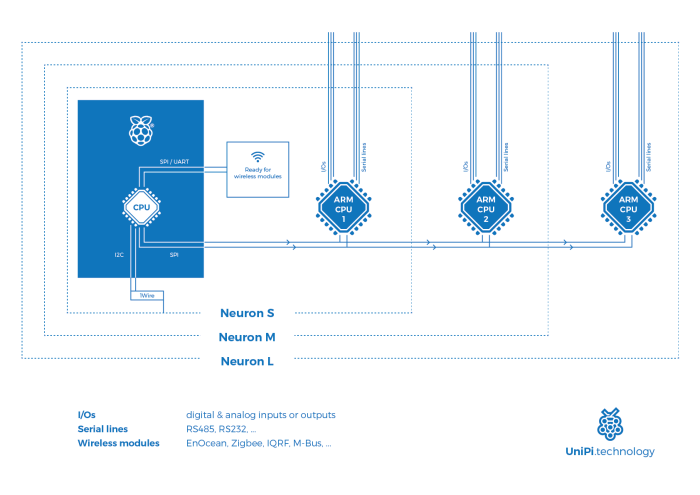

If you are looking for more information, you may be interested in Neuron series introduction or in its technological introduction. You can also find more information in the enclosed files.
| Artikelnummer | A00279 |
|---|---|
| Garantie | 2 Jaar |
| Short Description | UniPi Neuron M103 is a universal control unit. It is a PLC (Programmable Logic Controller). |
