UniPi Neuron S103
UniPi Neuron S103 is a universal control unit. It is a compact PLC (Programmable Logic Controller).
Niet op voorraad
Bestel als pre-order en ontvang het artikel wanneer het weer op voorraad is.

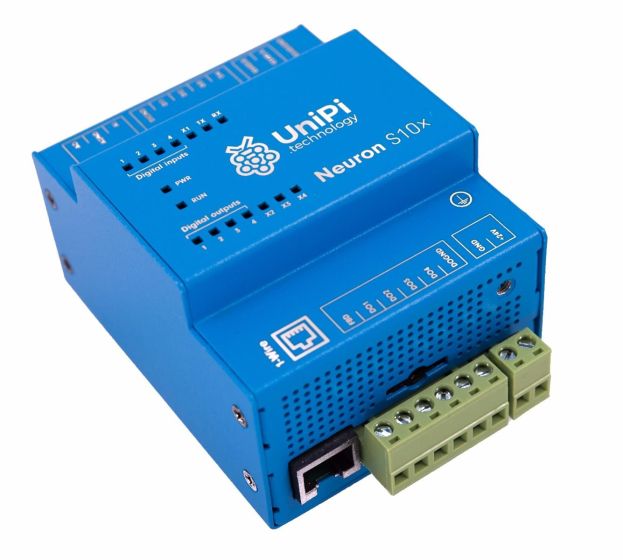

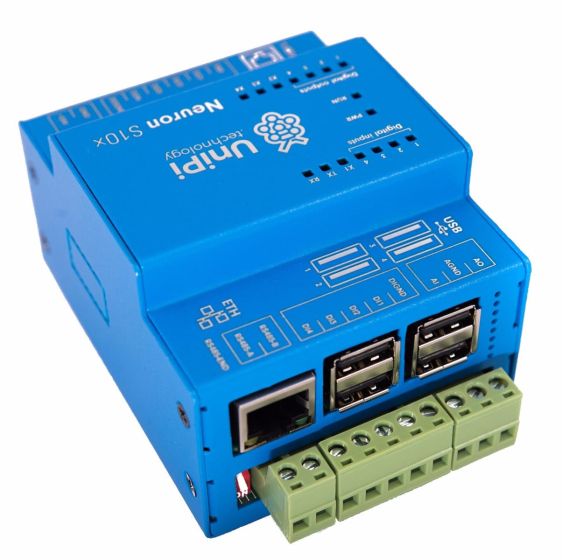

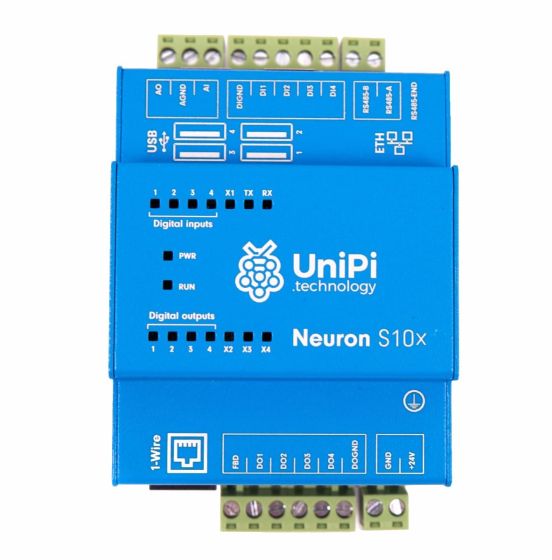

UniPi Neuron S103 is a universal control unit. It is a compact PLC (Programmable Logic Controller). You can use Neuron S103 as a smart home controller, it is also great for energy consumption monitoring, data collection and storing it to cloud or as a powerful and feature-rich gateway for other devices (e.g. boilers). It features digital inputs, transistor outputs, and serial interface.

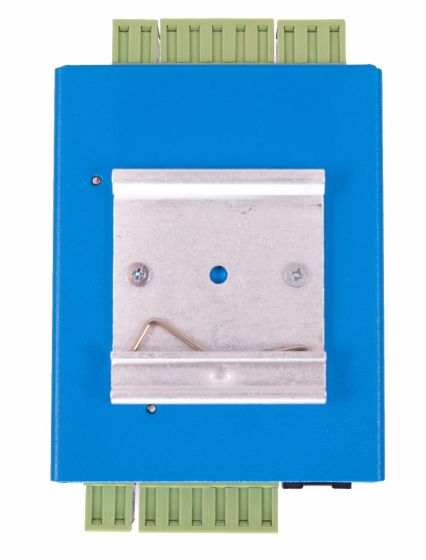

Compared to Neuron M and Neuron L it has less I/Os and is more compact. It has integrated DIN rail mounting for installation in racks and distribution boxes where it takes 4 modules (1 module = 17.5 mm). Neuron units have the degree of protection IP20.
Product Specificaties
- Merk: UniPI
- Garantie: 2 jaar
Fysieke eigenschappen
- 4× Digital inputs 5-24 V DC
- 4× Transistor outputs max. 750 mA at 50 V DC
- 1× Analog output 0-10 V
- 1× Analog input 0-10 V/4-20 mA
- 1-Wire bus (with galvanic isolation)
- RS485 (for Modbus communication)
- RTC with backup up to 7 days
Features overig
- Mervis lifetime license
- 1 GB RAM
- 4 × 1.2 GHz CPU
- 4 × USB
- 1 × Ethernet 10/100 Mbps
- DIN rail mounting
- Anodized aluminum case
- Power supply 24 V DC required

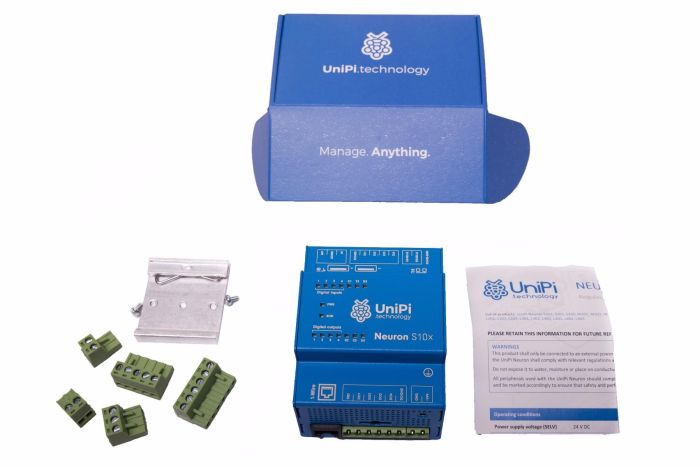

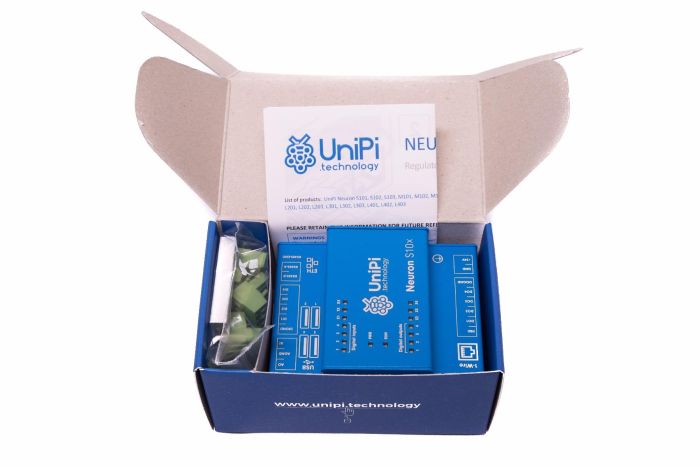

Inbegrepen Meegeleverd:
- Control module
- Removable screw connectors
- Holder for DIN rail (35 mm)
- Raspberry Pi 3bB
Mogelijkheden met UniPI
- Switch lights
- Control boilers
- Measure temperature
- Control home remotely
- Roll the shutters
- Get notifications
- Energy monitoring
- Gateway for other systems
- Watering systems
- Building management systems
- HVAC regulation
- SCADA

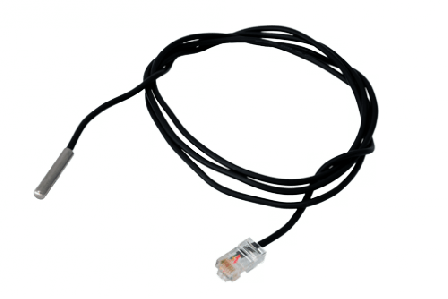

To 1-Wire channel you can connect up to 15 digital thermometers. With digital outputs and external relays, you can control the boiler. Connect electrometers or gas meters to digital inputs and measure your consumption. With analog output you can read from analog thermometers such as NTC or PT1000 or you can regulate boiler performance and Ethernet interface allows connection to the local network.
Neuron is suitable for all non-safety systems yet you can connect security system controller over Modbus. Generally, Modbus allows you to control any external device supporting this protocol.
UniPi Neuron S103 is a universal control unit. It is a compact PLC (Programmable Logic Controller).

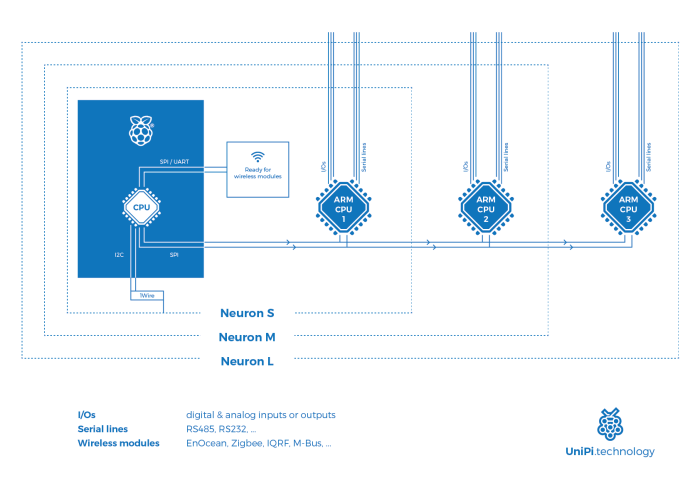

Standard Neuron model overview |
|||||||
| Product | DI | DO | RO | AI | AO | RS485 | Common features |
| Type S, size on DIN rail: 4 modules = 7 cm | 1-Wire bus Ethernet 10/100 Mb 4 × 1.2 GHz CPU 1 GB RAM WiFi Bluetooth |
||||||
| S103 | 4 | 4 | 1 | 1 | 1 | ||
| S103-G* | 4 | 4 | 1 | 1 | 1 | ||
| Type M, size on DIN rail: 8 modules = 14 cm | |||||||
| M103 | 12 | 4 | 8 | 1 | 1 | 1 | |
| M203 | 20 | 4 | 14 | 1 | 1 | 1 | |
| M303 | 34 | 4 | 1 | 1 | 1 | ||
| M403 | 4 | 4 | 28 | 1 | 1 | 1 | |
| M503 | 10 | 4 | 5 | 5 | 5 | 2 | |
| Type L, size on DIN rail: 12 modules = 21 cm | |||||||
| L203 | 36 | 4 | 28 | 1 | 1 | 1 | |
| L303 | 64 | 4 | 1 | 1 | 1 | ||
| L403 | 4 | 4 | 56 | 1 | 1 | 1 | |
| L503 | 24 | 4 | 19 | 5 | 5 | 2 | |
| L513 | 16 | 4 | 10 | 9 | 9 | 3 | |
| Extension modules, size on DIN rail: 4 modules = 7 cm | |||||||
| xS10 | 16 | 8 | 1 |
Extension modules communicate over Modbus. It is possible to connect them to the control unit via RS485 interface. Extension modules are compatible with any control unit supporting Modbus and having RS485 interface. |
|||
| xS30 | 24 | 1 | |||||
| xS40 | 8 | 14 | 1 | ||||
| xS50 | 6 | 5 | 5 | 4 | 4 | 1 | |
*Has integrated wireless GPRS module.
Neuron has a very short response time - response time between a signal on input and reaction on output can reach 0.5 ms. It has 1 GB RAM and quad-core 1.2 GHz CPU. Generally, Neuron offers excellent performance parameters of professional PLC (Programmable Logic Controller). All included in a resistant aluminum case.
Certification
Neuron is CE and EMC tested. According to standard, all UniPi Neuron products can be used in:
- Residential buildings, apartments
- Commercial areas, offices, banks
- Entertainment areas, cinemas, bars, pubs, dance clubs
- Outdoor places, gas stations, parking lots, sport centers
- Areas of light industry, workshops, laboratories, service centers
See the EU declaration of conformity in product file tab. In accordance with European standards, Neuron is a professional control unit. For the US market, it brings a device for automation development.
Other materials
If you are looking for more information, you may be interested in Neuron series introduction or in its technological introduction. You can also find more information in the enclosed files.
| Artikelnummer | A00323 |
|---|---|
| Garantie | 2 Jaar |
| Short Description | UniPi Neuron S103 is a universal control unit. It is a compact PLC (Programmable Logic Controller). |
