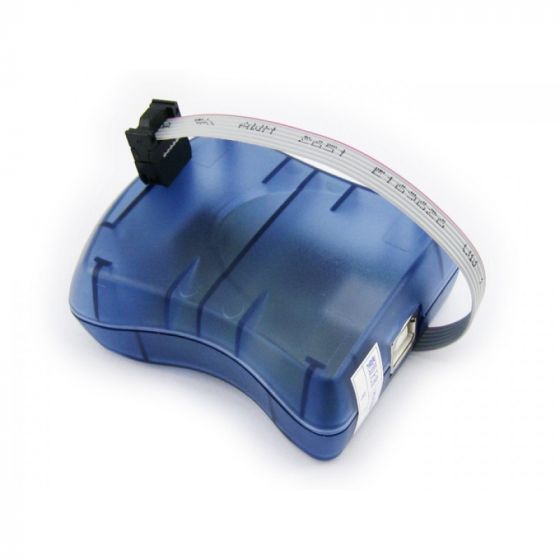

USB AVRISP XPII, AVR Programmer

AT AVRISP mkII compliant
- Compatible with AT AVR ISP, easy to use, stable and reliable

Based on AT AVRISP mkII firmware
- Identified as AVRISP mkII in AVRStudio, high speed programming

Upgradable firmware
- Firmware is upgradable to Support Future Devices
- Automatic Upgrade

Supported software
- AVR Studio 4/5/6 or WINAVR(GCC) is used as front-end software
- Supports the program files generated by IAR, ICCAVR, CVAVR

Device Support
- USB AVRISP XPII supports all AVR devices with ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio.
- Supports AT86RF401/AT89S51/AT89S52

• Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
• Programs both Flash and EEPROM
• Supports Fuses and Lock Bit Programming
• Based on AT AVRISP mkII firmware
• Upgradable to Support Future Devices
• Adjustable ISP programming speed up to 8M frequency
• USB 2.0 compliant (full speed, 12Mbps)
• 3 optional cables to target board
• Powered from USB bus, does not require external power supply

1. USB AVRISP XPII x1
2. USB Cable x1
3. 6-pin cable (spare) x1
4. 6-pin to 10-pin ISP cable x1
5. 6-wire multicolour custom connector cable x1
6. User Guide CD x1
7. Quick start sheet x1
